List of all products and specifications included during Enviro-Shelter 2013 Experiment
5 - High Efficiency Mono-crystalline Photovoltaic Module
Supplier - GRAPE SOLAR 250W MONO
• High efficiency solar cells (approx. 18%) with quality silicon material for high module conversion efficiency and long term output stability and reliability.• Rigorous quality control to meet the highest international standards.
• High transmittance, low iron tempered glass with enhanced stiffness and impact resistance.• Unique frame design with strong mechanical strength for greater than 50 lbs/ft2 wind load and snow load withstanding and easy installation.
• Advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance.
• Outstanding electrical performance under high temperature and weak light environments.
Use the link below for Factory Specs
Grape Solar
TS-60 TriStar 60 Charge Controller, 12/24/48V 60 Amps
- The controller is a three-function controller that provides reliable solar battery charging, load control or diversion regulation. This controller operates in only one of these modes at a time but two or more controllers may be used to provide multiple functions.
- Uses advanced technology and automated production to provide exciting new features at a competitive cost
- The controller is UL listed and is designed for both solar home systems and professional applications
The digital meter option displays self-test results, system information and controller setpoints. Remote temperature sensor option rated from -30° C (-22° F) to +80° C (+176° F). White power-coated steel, indoor rated, vertical mounting enclosure.
Use the link below for Factory Specs
Charge Controller
2000 /
4000 Watt Power InverterSA Series 2000
24V by Samlex
Use the link below for Factory Specs
Samlex Inverter
M-Series (Mini) 300 Amp Battery Switches
Use the link below for Factory Specs
300 Amp DC Switch
Samlex 24 Volt to 12 Volt DC Converter
Samlex SDC-15 DC to DC converter, 24 volts DC to 12 volts DC.
This is used where you have a 24 volt DC battery system but need to run equipment, such as DC lights, that require 12 volts DC. This avoids "tapping" a 24 volt battery system which can lead to uneven battery charging and early battery failure due to unbalanced charging.
Input 20-30 Volts DC, output 13.8 volts DC @ 15 Amps peak (12 Amps Continuous).
Use the link below for Factory Specs
12 to 24 DC Volt Converter
Autocraft Top Post Terminal Battery Cable, 78 inches (Red) and (Black)
* Solidium™ weld system features a high-grain top alloy and strong inter-cell weld to virtually eliminate corrosion
| Color: | Red or Black |
| Length: | 78 in |
| Material: | Copper |
| Post Design: | Top Post |
| Ring Terminals Both Ends: | No |
| Terminal #1 Type: | Top |
| Terminal #2 Type: | Eyelet |
| Wire Size: | 4 ga |
| With Extra Leads: | No |
Bussmann Fuse Link Pack - 80 Amps
Handy pack of one 80 amp FLD bolt-mount fusible link for 9/16" bolt terminals
Hampton Bay LED Powered Lantern
LED Exterior Lights Specs

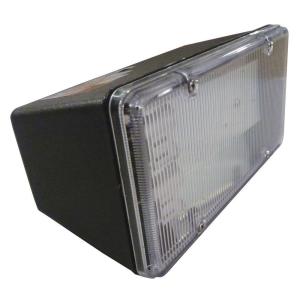

The Lithonia Lighting Wall-Mount 2-Light Outdoor Mini Floodlight
The Lithonia Lighting Wall-Mount 2-Light Outdoor Mini Floodlight is constructed
of weather-resistant injection-molded plastic with a bronze finish. Its compact
size and 1/2 in. threaded knuckle allow for discreet wall mounting directly to a
junction box. This light is perfect for illuminating driveways, decks and yards.
2 energy-efficient 13-watt CFL bulbs, equal to 120 watts of incandescent output,
are included
The EcoSmart 23-Watt (100W) Dimmable Soft White Light
The EcoSmart 23-Watt (100W) Dimmable Soft White CFL Light Bulb (E)* helps you create the perfect light level in your indoor space. Ideal for use in table lamps, sconces and other dimming lighting applications, the bulb provides a warm, full glow similar to that cast by an incandescent bulb. This durable bulb lasts up to 13 times longer than its 100-watt incandescent equivalent. (E)* means this bulb meets Federal minimum efficiency standards.
Grape Solar GS-S-150-Fab36 150-Watt Monocrystalline PV Solar Panel
- Positive and negative leads equipped with tyco connectors
- High efficiency solar cells (approx.19 percent) with quality silicon material for high module conversion efficiency and long term output stability and reliability
- Rigorous quality control to meet the highest international standards
- High transmittance, low iron tempered glass with enhanced stiffness and impact resistance
- Unique frame design with strong mechanical strength for easy installation
- Advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance
- Outstanding electrical performance under high temperature and weak light environments
- Works for both on-grid or off-grid solar power staions
Grape-Solar-GS-S-150
